Part number |
Package |
Trigger current(mA) |
On-state RMS current(A) |
Load voltage (Vac) |
Non zero-cross/Zero-cross |
Note: test condistion according to the datasheet |
Dielectric strength (Vrms) @loff≤ 0.3mA |
Operating temperature(°C) |
Remark |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Output on-state voltage drop (V) |
Surge current(A) |
Ton(ms) |
Toff(ms) | |||||||||
封装形式 |
触发电流(mA) |
额定电流(A) |
负载电压(Vac) |
调相型/过零型 |
导通电压降(V) |
浪涌电流(A) |
导通时间(ms) |
关断时间(ms) |
介质耐压(Vrms) |
工作温度(°C) |
备注 |
|

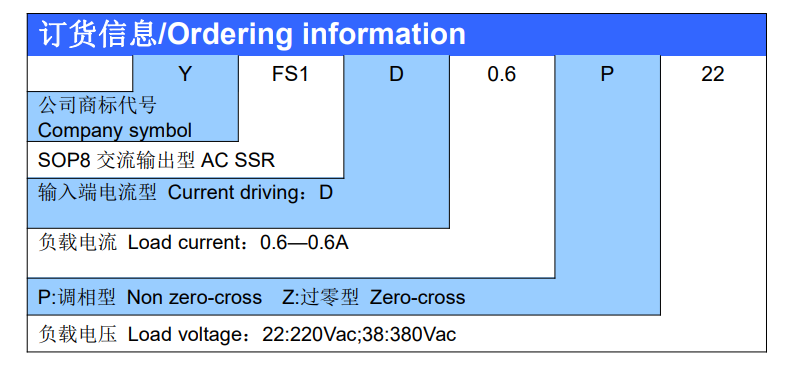

YFS1/D0.6P22 规格书下载 |
SOP8 |
8 |
0.6 |
220 |
Non-zero cross |
2 |
6 |
1 |
1+1/2cycle |
3000 |
-30 ~ 85 |
N.O. |
